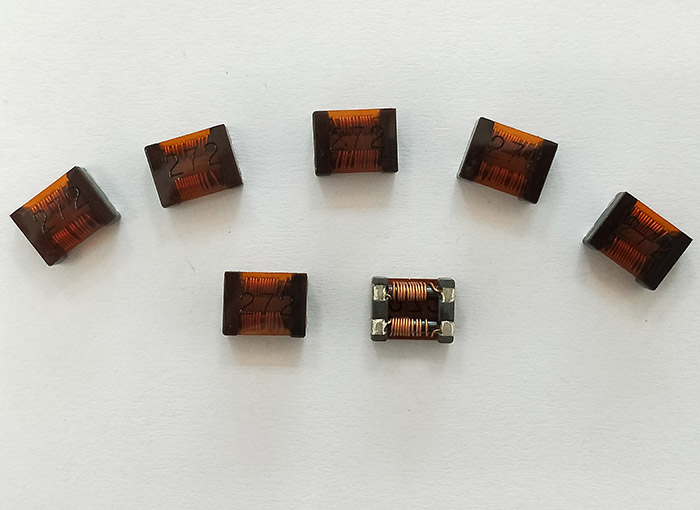

MCSF Series

Feature

1. Have achieved miniaturization while keeping characteristics by adoption

of exclusive square type closed magnetic cores .

2. Due to the low profile design,it is suitable for surface mount.

3. High impedance characteristic has been a chieved a suprior effect for

common mode noise suppression.

4. This products have seria lized a large current product up to 10A

corresponding for various DC power lines.

Application

Common mode noise countermea sures for DC power lines of electronic

control equipment, multi-media equipment for automotives and various

electronic equipment power supply lines.

MCSF Series.pdf

MC   SF   0706Z   301

A       B       C          D

A: Company code        C: Dimension.

B: Series name             D: Impedance 301=300 (Ω)
