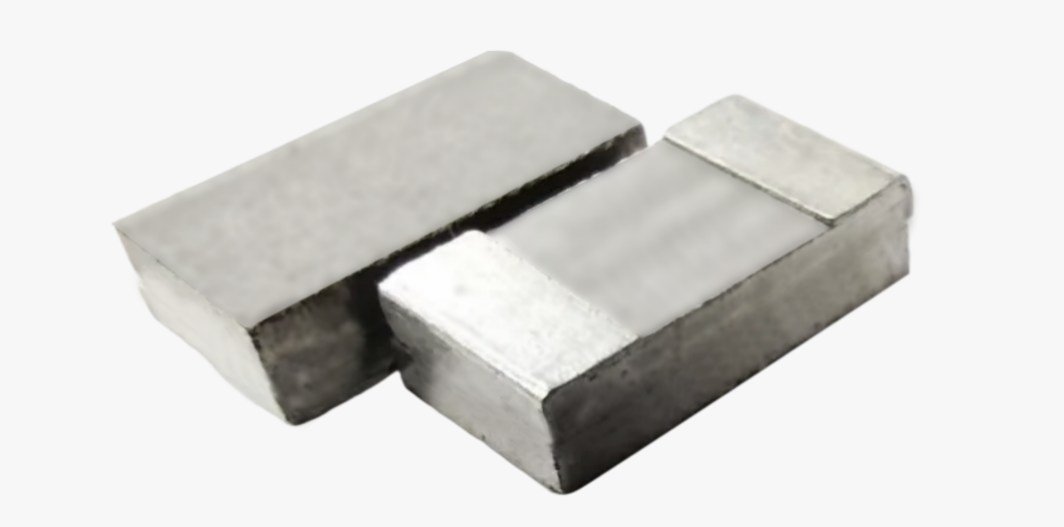

Suzhou MoreChance Electronics Nano Ultra Micro Inductor: The Excellent Choice for High Performance Inductors. In today's rapidly developing electronic devices, inductors, as key electronic components, directly affect the overall performance of the equipment in terms of their performance. Maochang Electronics, with its profound technical accumulation and dedicated spirit, has launched a series of inductance products using high conductivity nano alloys and ultra narrow gap processes, especially the MCSHV105828 model, which provides ideal inductance solutions for various high-end electronic devices with its unique design and excellent performance.
一、Widely applicable in various fields

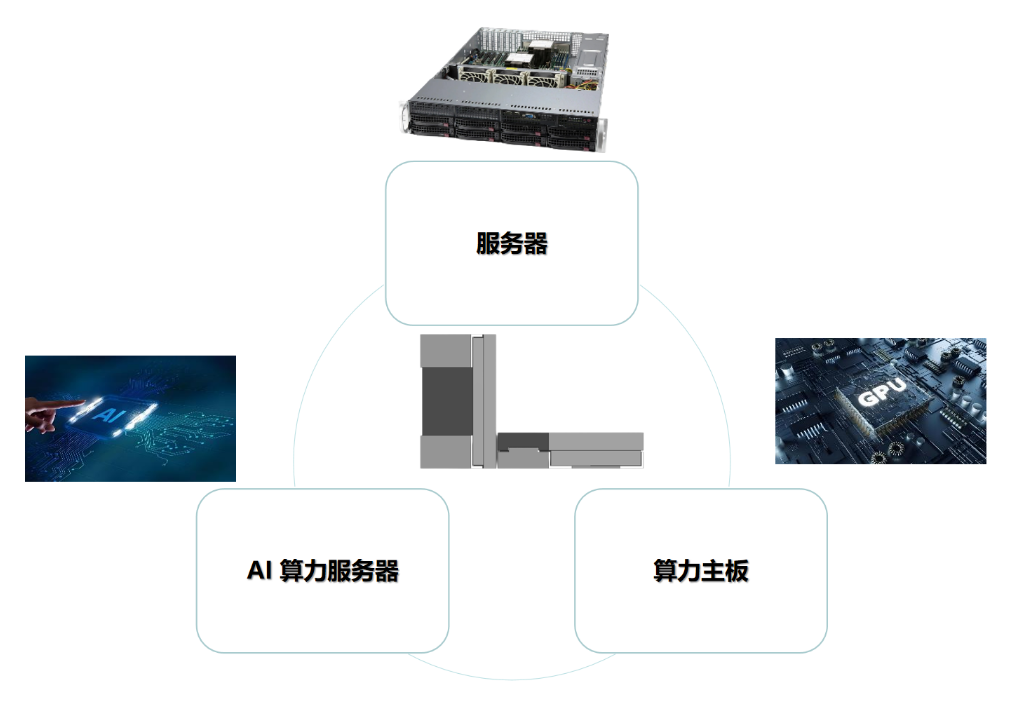

MCSHV105828 nanometer ultra-thin inductors play an indispensable role in cutting-edge technology fields such as acceleration cards, AI servers, GPUs, etc. In these high-performance devices, stable and reliable inductance is the key to ensuring smooth power supply and stable signal transmission. Taking AI servers as an example, their complex computing tasks require a large amount of power support. The MCSHV105828 inductor can work efficiently in different voltage conversion scenarios, such as when the D/D voltage is 12V-1.2V, the commonly used inductance is 0.12-0.15uH, accurately matching the power requirements of the server, ensuring stable operation of the server, and improving computing efficiency.
二、 Exquisite product design
（1） Excellent iron core material. The iron core is made of high conductivity nano alloy material, which lays a solid foundation for the inductance performance. By changing the magnetic permeability of the material, the inductance value of the inductor can be accurately adjusted to meet different circuit design requirements. At the same time, the flat design of the bottom magnetic core greatly reduces the difficulty of assembly, ensures the flatness of the product on the circuit board, and reduces performance loss caused by installation problems; The top magnetic core has a groove, cleverly ensuring the centering of the terminal piece, further enhancing the stability of the overall performance of the inductor.
（2） The terminal piece is ingeniously designed and made of copper material, which has the characteristics of no bending and one-time molding. This design avoids damage to the magnetic core during assembly, effectively reducing the defect rate of the finished product, while ensuring the flatness of the bottom of the product and improving the bonding effect with the circuit board. The side of the terminal piece is widened and wider than the middle width, which not only reduces the DC impedance and improves the current transmission efficiency, but also facilitates the assembly and positioning of the magnetic core; The increase in bottom area significantly improves the welding strength of the product, ensuring a stable connection between the inductor and the circuit board in complex environments, and avoiding problems such as virtual soldering and desoldering.
三、Significant performance advantage

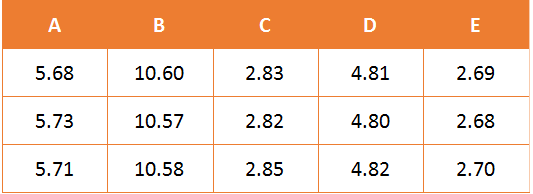

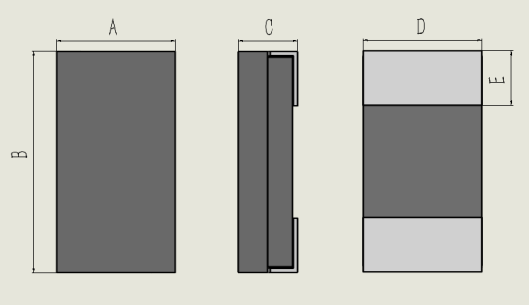

（1） Compared with the MCSHC10705 series, the MCSHV105828 has a significant advantage in size due to its compact size. Its width has been reduced by nearly 10%, and its height has been reduced by nearly 45%. The compact size provides more possibilities for the miniaturization design of electronic products, allowing for more flexible layout on circuit boards with limited space, helping engineers create more compact and efficient circuit systems.

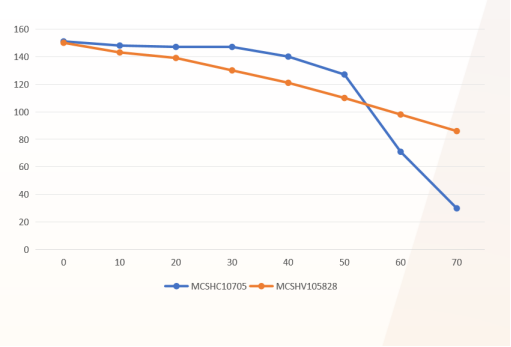

（2） Excellent saturation characteristics. At 70A current, the inductance is about 60% of the initial inductance L0, and at 80A, it is about 50% L0. This means that even in high current environments, the MCSHV105828 ultra narrow gap inductor can still maintain good performance. Compared to the MCSHC10705 series, it can better withstand overcurrent when the current is large (above 50A), effectively preventing the back-end MOS or IC components from burning out due to current overload, greatly improving the safety and stability of the circuit.
（3） The reliable quality is attributed to advanced production processes and meticulous design, resulting in a low defect rate for MCSHV105828 nanometer ultra-thin inductors. In the production process, through optimized process and automation settings, the air gap of the product is infinitely close to zero, which not only increases the bonding strength but also reduces magnetic leakage, ensuring product quality from all aspects.
Suzhou MoreChance ElectronicsMCSHV105828 nanometer ultra-thin inductor has become the top choice for electronic device manufacturers due to its wide range of applications, exquisite product design, and significant performance advantages. Choosing Maochang Electric Nano Ultra Micro Inductors means choosing a more stable, efficient, and reliable electronic solution to help your product stand out in market competition and lead the trend of industry development.
